| Part # | 2162 | 2163 |
| HP | 1/2 – 1/6 | 3/4 – 1/5 |
| Voltage | 208 / 230V | 208 / 230V |
| Amp Rating | 3 | 4.9 |
| RPM | 1075 / 4 | 1075 / 4 |
| Capacitor | 5 or 7.5 MFD / 370V @ 1/3-1/6 HP 10 MFD / 370V @ 1/2 HP |
10 MFD / 370V @ 1/2-1/5 HP 20 MFD / 370V @ 3/4 HP |
| Motor Type | PSC | PSC |
| Frame | 48 | 48 |
| Enclosure | Open Air | Open Air |
| Insulation Class | B | B |
| Ambient Temp. | 40º C / 104ºF | 40º C / 104ºF |
| Motor Diameter | 5.625 in. | 5.625 in. |
| Shaft Diameter | 0.5 in. | 0.5 in. |

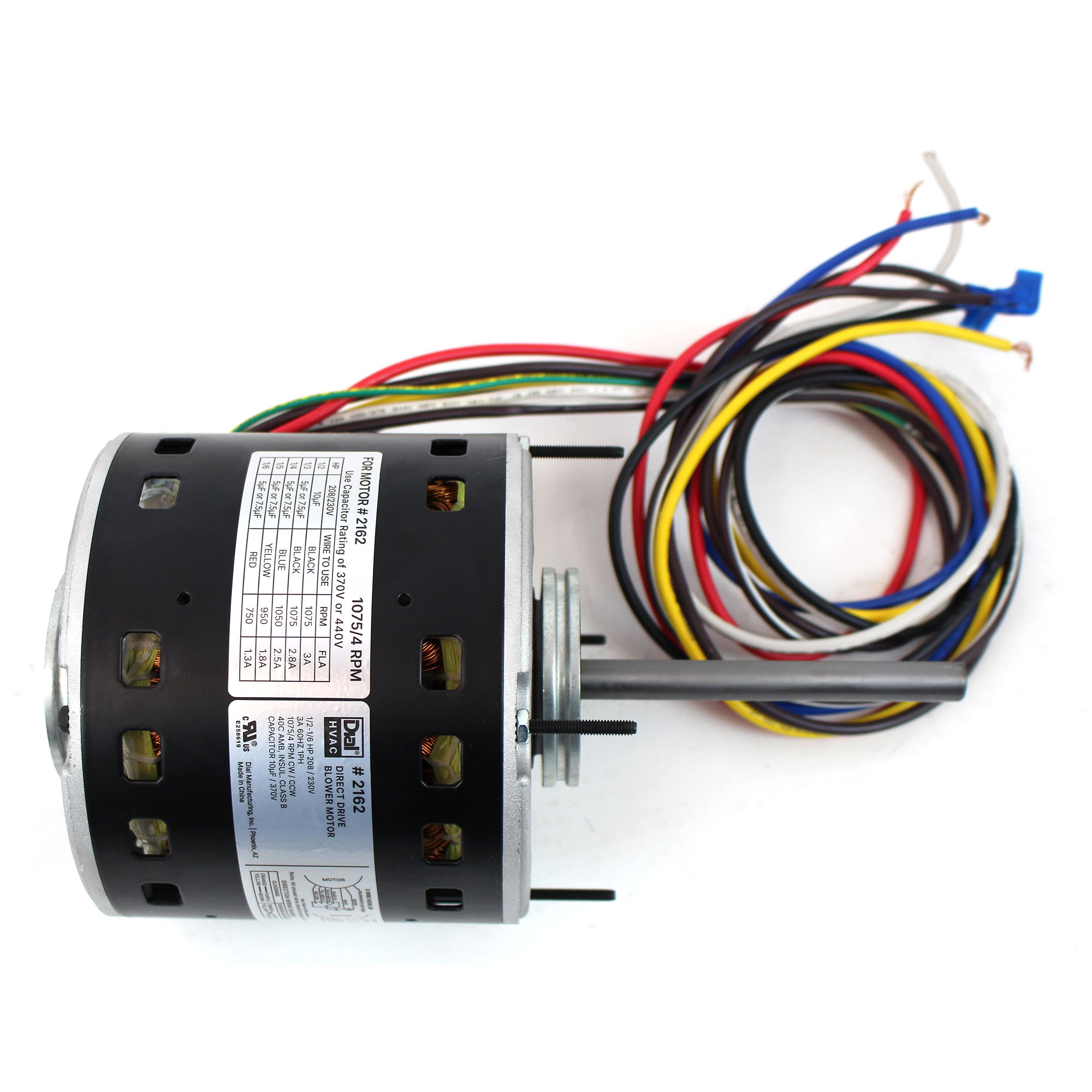

208/230V – Multi-Horsepower Direct Drive Blower Motor
- 60 Hertz / Single Phase
- Reversible Rotation
- Auto Thermal Protection
- UL Recognized
- Specifications
- Cross-Reference Guide
- Mounting
- Documents
- Packaging Information
- California Proposition 65
| Part # | 2162 | 2163 |
| Diversitech | WG840464 | WG840467 |
| Mars | 10464 | 10467 |
| JARD by Mars | 22464 | 22467 |
| Packard | 45461 | 45471 |
| Economaster | EM3464 | EM3467 |
| Century/AO Smith | FD6000A | FD6001 |
| Smart Electric | SE3464 | SE3467 |
| US Motors/Emerson | 5461 | 5471 |
| Marathon | X073 | X075 |
| FASCO | D833 | D2833 |
Mars, Wagner, Packard, Economaster, Century/AO Smith, Smart Electric, US Motors/Emerson, Marathon, and FASCO are trademarks or registered trademarks of their respective owners. Reasonable measures were taken to ensure the accuracy of the motor cross-reference information. However, the installer is responsible for determining a suitable replacement motor.
Extended Studs, Rheem® Shell Holes including screws, Belly Band, 2.5″ Diameter Hub Rings
Product Documents
Technical Documents
Packaging Information
| PKG | Box |
|---|---|
| Carton QTY | 1 |
