| Part # | 2130 | 2131 | 2132 | 2133 | 2134 | 2137 | 2138 |
| HP | 1/6 | 1/4 | 1/3 | 1/2 | 3/4 | 1/4 | 1/3 |
| Voltage | 208 / 230V | 208 / 230V | 208 / 230V | 208 / 230V | 208 / 230V | 208 / 230V | 208 / 230V |
| Amp Rating | 1.2 | 1.8 | 2.4 | 3.2 | 4.4 | 1.5 | 2 |
| RPM | 1075 | 1075 | 1075 | 1075 | 1075 | 825 | 825 |
| Capacitor | 5 MFD / 370V | 5 MFD / 370V | 7.5 MFD / 370V | 10 MFD / 370V | 10 MFD / 370V | 7.5 MFD / 370V | 10 MFD / 370V |
| Motor Type | PSC | PSC | PSC | PSC | PSC | PSC | PSC |
| Frame | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Enclosure | TEAO | TEAO | TEAO | TEAO | TEAO | TEAO | TEAO |
| Insulation Class | F | F | F | F | F | F | B |
| Ambient Temp. | 70º C / 158ºF | 70º C / 158ºF | 70º C / 158ºF | 70º C / 158ºF | 70º C / 158ºF | 70º C / 158ºF | 70º C / 158ºF |
| Motor Diameter | 5.625 in. | 5.625 in. | 5.625 in. | 5.625 in. | 5.625 in. | 5.625 in. | 5.625 in. |
| Shaft Diameter | 0.5 in. | 0.5 in. | 0.5 in. | 0.5 in. | 0.5 in. | 0.5 in. | 0.5 in. |
| Shaft Extension | – | 6.4 in. | 5.9 in. | 6.4 in. | 5.5 in. | 6 in. | 6 in. |
| Lead Length | – | 36 in. | 36 in. | 36 in. | 36 in. | 36 in. | 36 in. |

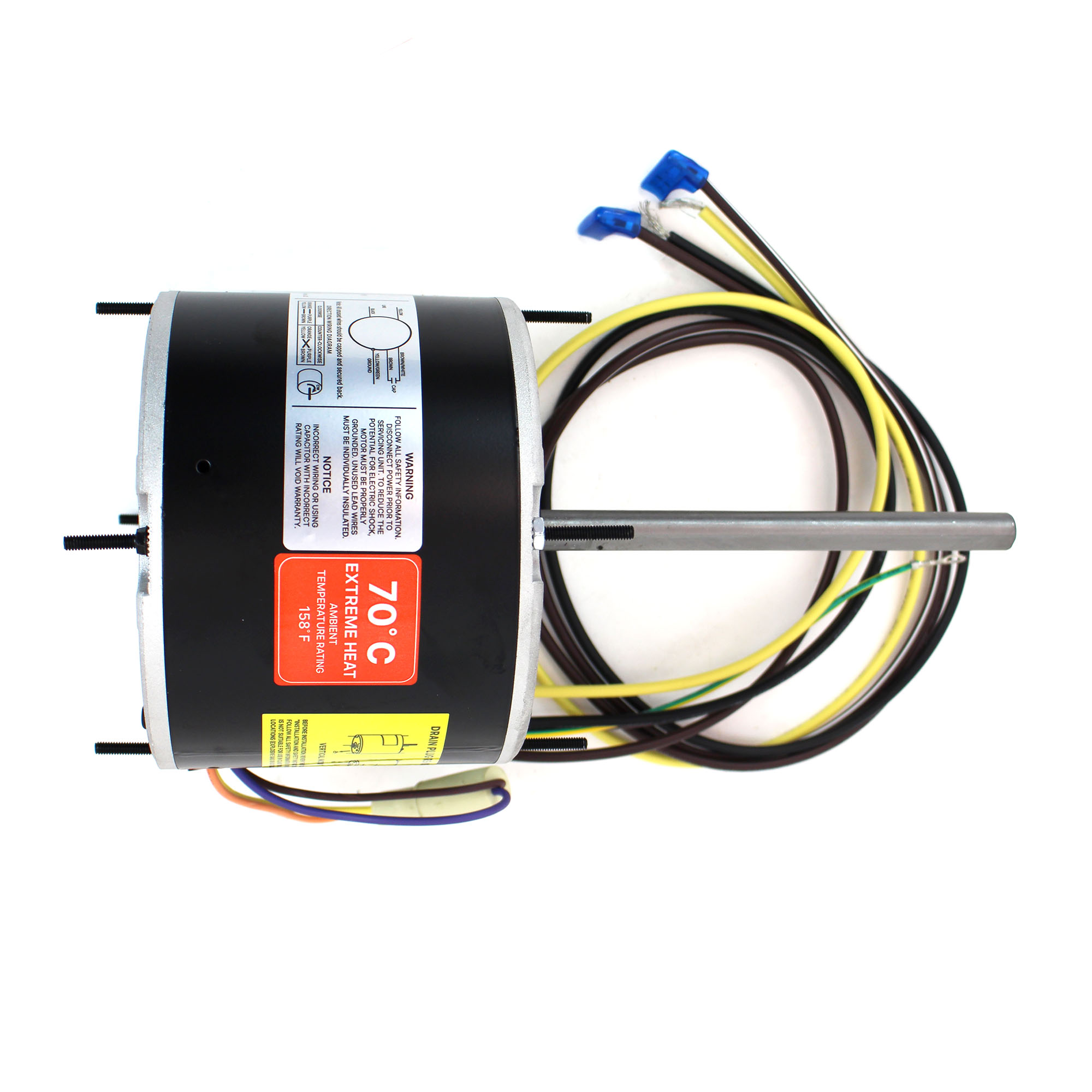

208/230V – 70°C Condenser Fan Motor
- Suitable for Extreme Heat (70°C / 158°F)
- 60 Hertz / Single Phase
- Reversible Rotation
- Auto Thermal Protection
- UL Recognized
- Specifications
- Cross-Reference Guide
- Mounting
- Documents
- Packaging Information
- California Proposition 65
| Part # | 2130 | 2131 | 2132 | 2133 | 2134 | 2137 | 2138 |
| Diversitech | WG840727HT | WG840728HT | WG840729HT | WG840730HT | WG840731HT | WG840204HT | WG840205HT |
| Mars | 20727 | 20728 | 20729 | 20730 | 20731 | 20404 | 20405 |
| Packard | – | 43732F | 43733F | 43734F | 43735F | 40825F | 30825F |
| Economaster | EM3727F | EM3728F | EM3729F | EM3730F | EM3731F | EM3404F | EM3405F |
| Century/AO Smith | FE1016SF | FE1026SF | FE1036SF | FE1056SF | FE1076SF | FE1028SF | FE1038SF |
| Smart Electric | – | SE3178 | SE3179 | – | – | SE3378 | SE3379 |
| US Motors/Emerson | 1859H | 1860H | 1861H | 1862H | 1868H | 1874H | 1875H |
Mars, Wagner, Packard, Economaster, Century/AO Smith, Smart Electric, and US Motors/Emerson are trademarks or registered trademarks of their respective owners. Reasonable measures were taken to ensure the accuracy of the motor cross-reference information. However, the installer is responsible for determining a suitable replacement motor.
Extended Studs, Shell Mounting Holes including screws, Belly Band, Shaft UP/Down
Product Documents
Technical Documents
Packaging Information
| PKG | Box |
|---|---|
| Carton QTY | 1 |
