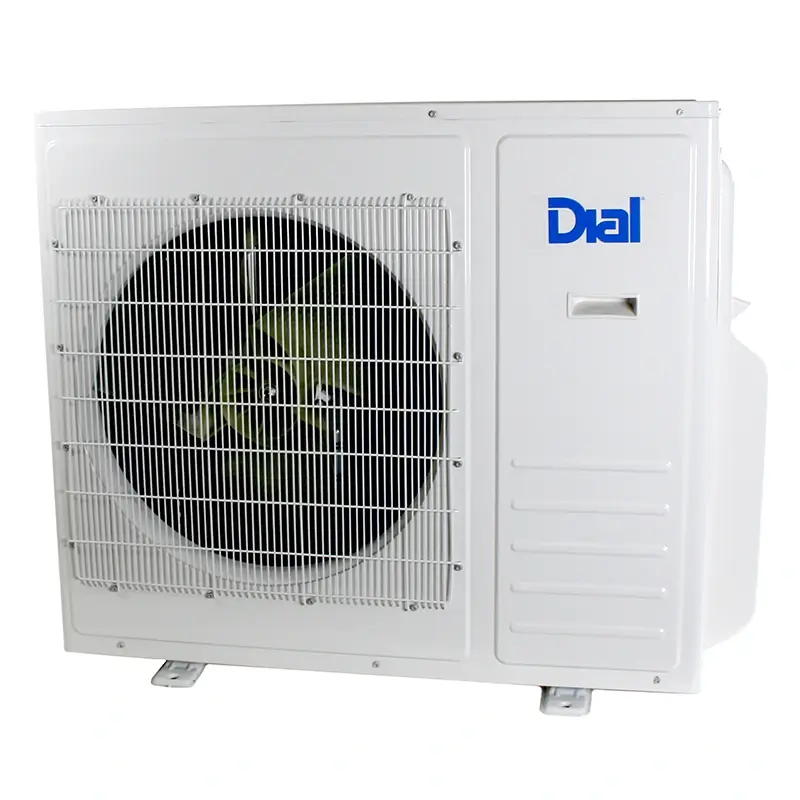

24,000 BTU 3-Zone Outdoor Unit
- Multi-Zone Outdoor Unit
- 3 Zone / Connection Ports
- R-410A
- 24,000 BTU
- 208/230V
- 22 SEER2 / 22 SEER
Description
Feature Highlights
-
Eco-Friendly Energy Savings
The unit uses R-410A refrigerant, which is more environmentally friendly than most other refrigerants and allows for higher SEER ratings that reduce energy consumption.
-
Low Temperature Cooling
Cooling mode can be used at a lowest of 14°F (-10°C) outdoor temperatures.
-
Quiet Operation
Quiet operation of the outdoor unit during both cooling and heating modes.
| General Information | Operating Mode | Cooling and Heating |
| Number of Zones/Connection Ports | 3 | |
| Refrigerant Pre-Charge (oz) | R410A 81.13 | |
| Performance Information | Cooling Capacity | 24000 BTU/H |
| Heating Capacity | 24000 BTU/H | |
| SEER / SEER2 (BTU/H) | 22 / 22 | |
| HSPF / HSPF2 (BTU/W.h) | 11 / 8.0 | |
| EER (Cooling) BTU/W.h | 12.5 | |
| COP (Heating) W/W | 3.63 | |
| Air Circulation (CFM) | 2350 | |
| Noise Level | 59 dB(A) (Max) | |
| Electrical Information | Power (V/Hz/Phase) | 208~230 / 60 / 1 |
| Rated Current (A) | 8.7 Cooling | |
| 8.7 Heating | ||
| Power Input-Cooling (W) | 1920 (420 ~ 2640) | |
| Power Input-Heating (W) | 1920 (420 ~ 4020) | |
| Working Outdoor Temperature Range | Cooling | 14°F-114.8°F; -10°C-46°C |
| Heating | -13°F-75.2°F; -25°C-24°C | |
| Refrigerant Line/Piping Information | Piping Diameter (Liquid) | 1/4 in. |
| Piping Diameter (Gas) | 3/8 in. | |
| Piping Max Length (Individual) | 66 ft. | |
| Piping Max Length (Total) | 197 ft. | |
| Piping Max Height | 49 ft. | |
| Dimension & Weight | Net Dimension (WxHxD) | 37 3/8 x 33 x 13 3/8 in. |
| Net Weight | 158.7lbs | |
| Certifications | Industry Certification | ETL / AHRI |
| Energy Saving Energy Star Rating | Energy Star 6.1 | |
| Warranty | Compressor/Parts (Years) | 7 / 5 |
