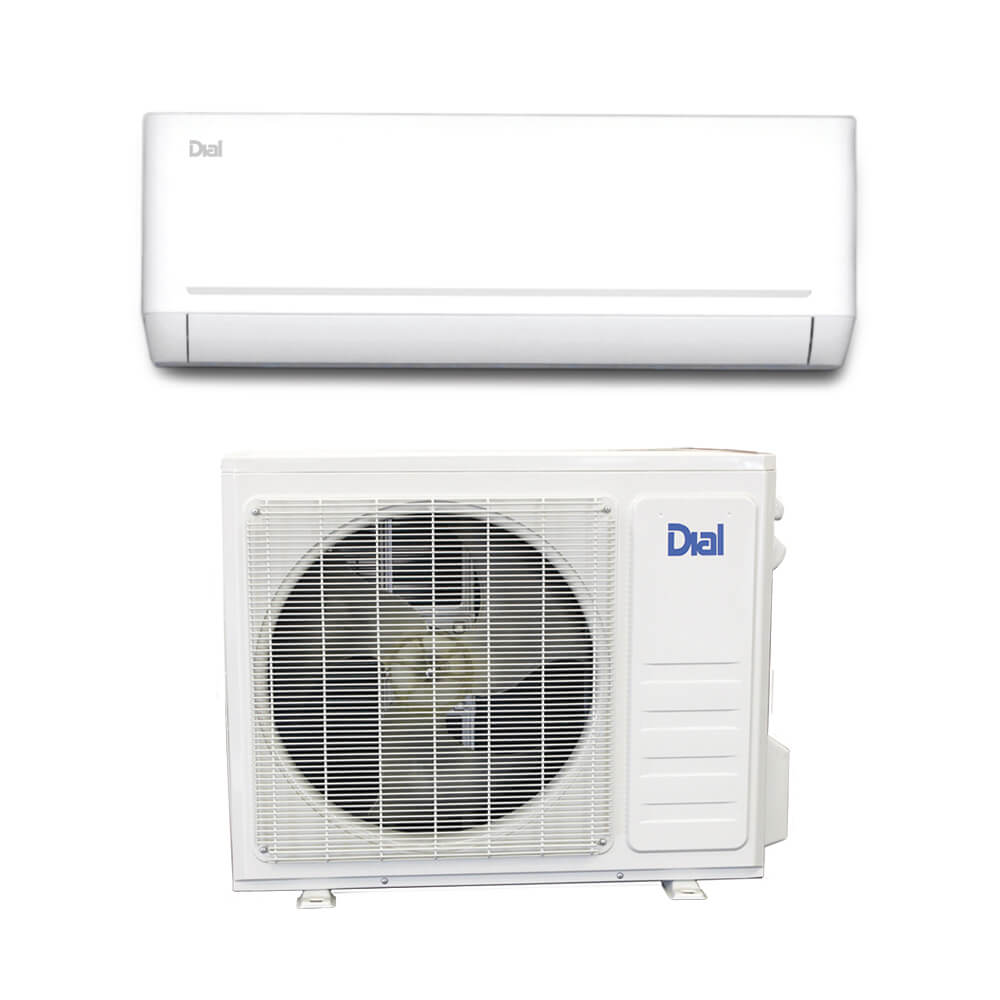

23,000 BTU 230V (23.0 SEER2) Mini-Split

  • Mini-Split Air Conditioning & Heating
  • Indoor & Outdoor Unit
  • R-454B
  • 23,000 BTU
  • 208/230V
  • 23.0 SEER2
  • Wireless Remote Control
  • 16 ft. Line-Set Package
Model # A2LSZHW23NW230BCJ Part # 80191 Category:

Product Description

Feature Highlights

Eco-Friendly Energy Savings

The unit uses R-454B refrigerant, which is more environmentally friendly and allows for higher SEER ratings that reduce energy consumption.

Low Temperature Cooling

Cooling mode can be used at a lowest of 5°F (-15°C) outdoor temperatures.

Smart Temperature Mode

Operation mode and temperature are automatically set based on the current room temperature.

Fast Cooling Mode

Fast cooling operates at a high fan speed and changes the set temperature automatically to 61°F (16°C) to cool the area quickly.

Wi-Fi

Wi-Fi control compatible with smart phone app (Android and iOS).

Refrigerant Leak Detection

Displays an error code on the indoor unit if a refrigerant leak or fault is detected.

4 Direction Air Flow

Using the remote controller, the air flow can be set to a desired static position or to swing up/down and left/right automatically.

Independent Dehumidification

In addition to dehumidifying during cooling mode, the Dry mode reduces moisture in the air without drastically changing the area temperature.

24 Hour Timer

Program the unit for one on/off cycle at a desired time within a 24 hour time period.

Quiet Operation

Quiet operation of the outdoor unit during both cooling and heating modes.

Easy Installation

Instead of a large exhaust from a window or wall, it requires only a 3 inch hole to connect the indoor unit to the outdoor unit.

Self-Cleaning Function

Helps clear accumulated dust and bacteria from the indoor unit.

Additional Features

  • Intelligent Pre-Heating / Defrost
  • Anti-Frozen Pipe Heating (8°C / 46°F)
  • Washable Filter
  • Fireproof Electrical Box
  • Sleep Mode
  • Follow Me / I Feel (Remote Thermostat)
  • Celsius and Fahrenheit Display
  • Display On/Off
System Air Conditioning Type Heat Pump
Application Room Size (sqft) Up to 1500
Electrical Voltage, Frequency, Phase 208/230V~,60Hz,1P
Compressor Motor Technology Inverter
Refrigerant (pre-charge oz) R454B 55.03
Max Pre-Charged Line-Set (ft) 25
Max Line-Set Length(1) (ft) 50
Max Height (ft) Indoor & Outdoor 33
Liquid Pipe (Diameter-inch) 1/4
Suction Line (Diameter-inch) 5/8
Performance Single Zone Cooling Capacity (BTU/H) 23,000
Single Zone Heating Capacity (BTU/H) 25,000
Multi-Zone Cooling Capacity (BTU/H) 23,000
Multi-Zone Heating Capacity (BTU/H) 23,000
SEER2 (Cooling) BTU/W.h 23.0
HSPF2 (Heating) Region IV / Region V BTU/W.h 9.5 / 8.2
EER2 (Cooling) 95°F BTU/W.h 12.0
COP2 (Heating) 47°F / 5°F W/W 3.41 / 1.8
Moisture Removal per Hr (Dehumidifier) 0.29gal
Indoor Unit Dimensions (LxHxD) (inches) 43.18 × 13.07 × 8.74
Weight (lbs) 30.9
Air Circulation (Turbo/High/Med/Low/Mute) CFM 735/676/529/423/394
Air Circulation (Direction) 4-Way
Sound Level (Turbo/High/Med/Low/Mute) dB (A) 50/47/43/38/34
Outdoor Unit Dimensions (LxHxD) (inches) 38.50 x 16.57 x 31.61
Weight (lbs) 104.7
Sound Level dB (A) 54
Electrical Current Input Cooling (A) 8.3
Current Input Heating (A) 9.0
Power Input Cooling (W) 1860
Power Input Heating (W) 2000
Fuse Size 25A
Min Circuit Amp 17.0A
Working Temperature Range Cooling 5°F-131°F
Heating -13°F-86°F
Approval & Certification Industry Certification ETL / AHRI
Energy Saving Energy Star Rating Energy Star 6.1
NEEP, Canada, Quebec, Nova Scotia Yes
Warranty Compressor/Parts (Years) 7 / 5
(1) Requires additional refrigerant charge
