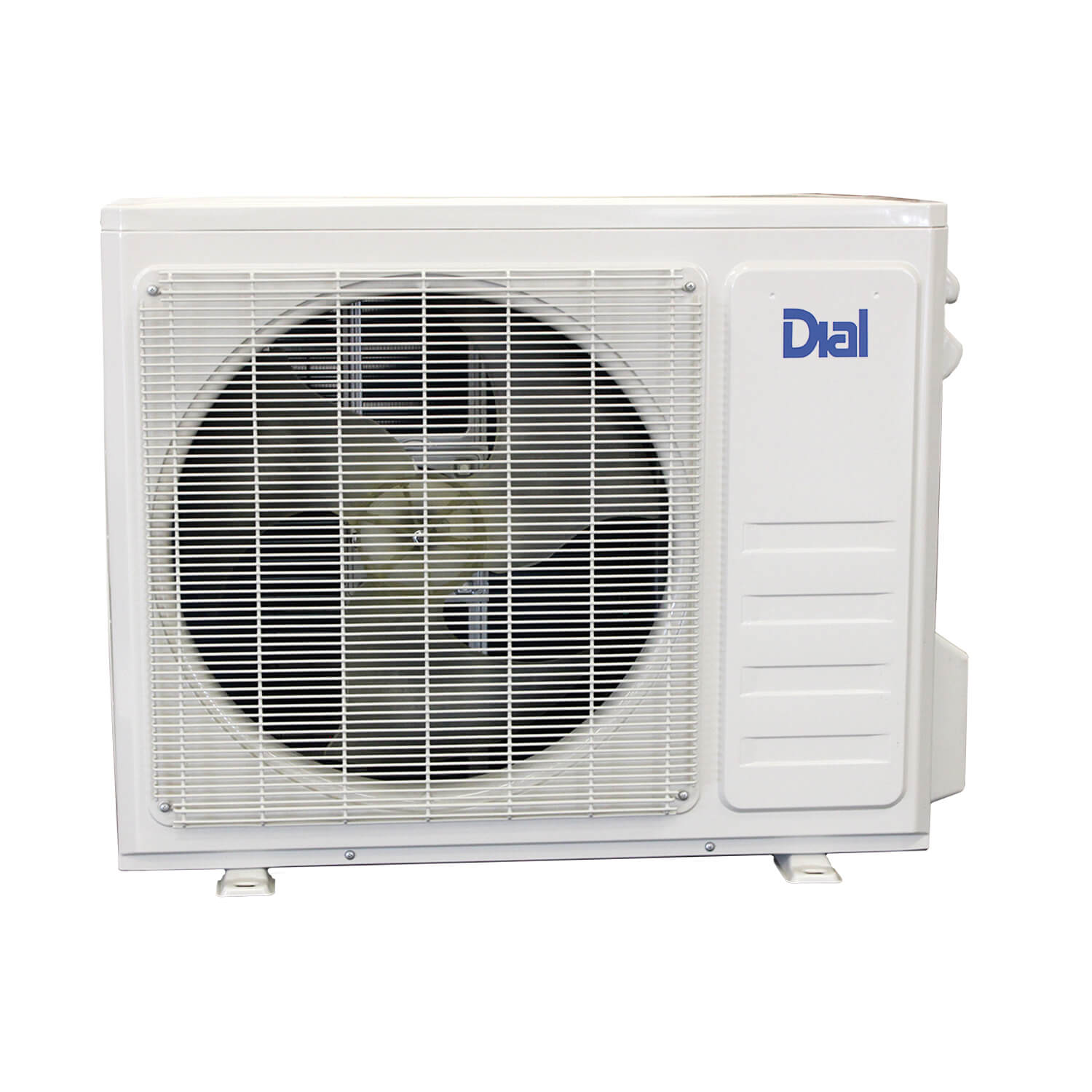

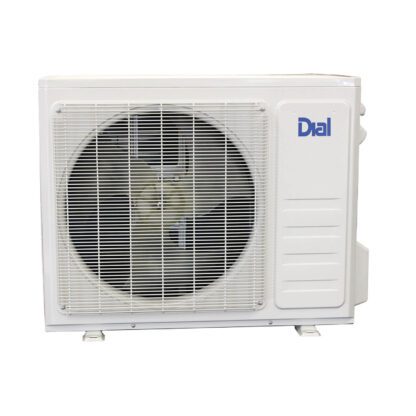

35,000 BTU 4-Zone Outdoor Unit

  • Mini-Split Air Conditioning & Heating
  • Outdoor Unit
  • R-454B
  • 35,000 BTU
  • 208/230V
  • 22.5 SEER2
  • 4 Zone / Connection Ports
Model # A2LMZ35WW4PBBE Part # 80213 Category:

Product Description

Feature Highlights

Inverter Technology

Energy efficient full DC inverter adjusts compressor speed automatically.

Low Temperature Cooling

Cooling mode can be used at a lowest of 14°F (-10°C) outdoor temperatures.

Quiet Operation

Quiet operation of the outdoor unit (DC inverter) during both cooling and heating modes.

Eco-Friendly Energy Savings

The unit uses R-454B refrigerant, which is more environmentally friendly than most other refrigerants and allows for higher SEER ratings that reduce energy consumption.

General Information Operating Mode Cooling and Heating
Number of Zones/Ports 4
Refrigerant Pre-Charge (oz) R454B 98.84
Performance Information Cooling Capacity 35000 BTU/H
Heating Capacity 36000 BTU/H
SEER2 (BTU/H) 22.5
HSPF2 Region IV / Region V (BTU/W.h) 9.5 / 8.2
EER2 (Cooling) BTU/W.h 12.0
COP2 (Heating) 47°F / 5°F W/W 3.51 / 2.00
Noise Level 65 dB(A) (Max)
Refrigerant Line/Piping Information Piping Diameter (Liquid) 1/4 in.
Piping Diameter (Gas) 3/8 in.
Piping Max Length (Individual) 98 ft.
Piping Max Length (Total) 263 ft.
Piping Max Height 49 ft.
Electrical Information Power (V/Hz/Phase) 208/230V~/60Hz/1P
Rated Current (A) 13.1 Cooling
12.0 Heating
Power Input-Cooling (W) 2930
Power Input-Heating (W) 2680
Fuse Size 35A
Min Circuit Amp 22A
Working Outdoor Temperature Range Cooling 5°F-131°F
Heating -13°F-86°F
Dimension & Weight Net Dimension (WxHxD) 42.28 x 33.58 x 18.42 in.
Net Weight 145.5 lbs
Certifications Industry Certification ETL / AHRI
Energy Saving Energy Star Rating Energy Star 6.2
NEEP, Canada, Quebec, Nova Scotia Yes
Warranty Compressor/Parts (Years) 7 / 5
(2) Indoor Unit
Combinations		 (3) Indoor Unit
Combinations		 (4) Indoor Unit
Combinations
18,000 BTU
2-Zone Unit		 9k + 9k Not Applicable Not Applicable
9k + 12k
12k + 12k
27,000 BTU
3-Zone Unit		 9k + 18k 9k + 9k + 9k 9k + 9k + 12k Not Applicable
12k + 18k 9k + 9k + 18k 9k + 12k + 12k
18k + 18k 9k + 12k + 18k 12k + 12k + 12k
35,000 BTU
4-Zone Unit		 12k + 24k 9k + 9k + 9k 9k + 9k + 12k 9k + 9k + 9k + 9k 9k + 9k + 12k + 12k
18k + 18k 9k + 9k + 18k 9k + 9k + 24k 9k + 9k + 9k + 12k 9k + 9k + 12k + 18k
18k + 24k 9k + 12k + 12k 9k + 12k + 18k 9k + 9k + 9k + 18k 9k + 12k + 12k + 12k
24k + 24k 9k + 12k + 24k 9k + 18k + 18k 9k + 9k + 9k + 24k 12k + 12k + 12k + 12k
12k + 12k + 12k 12k + 12k + 18k
12k + 12k + 24k 12k + 18k + 18k
Note: Only use the system combinations shown in the table.
